Titan Tractor Tipper Trailer has an irreplaceable role in Jamaica's infrastructure field. In agricultural production, it can also be used to transport agricultural products such as sugar cane and bananas. Its flexible loading and unloading method can reduce the loss of agricultural products during transportation and help farmers increase their income.

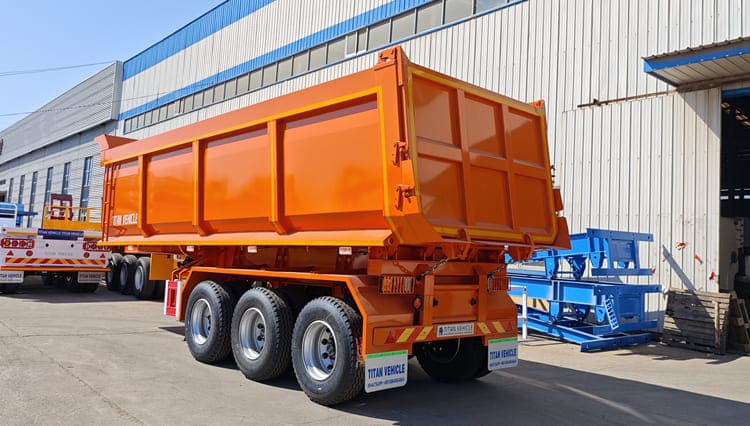

Tractor Tipper Trailer for Sale in Jamaica

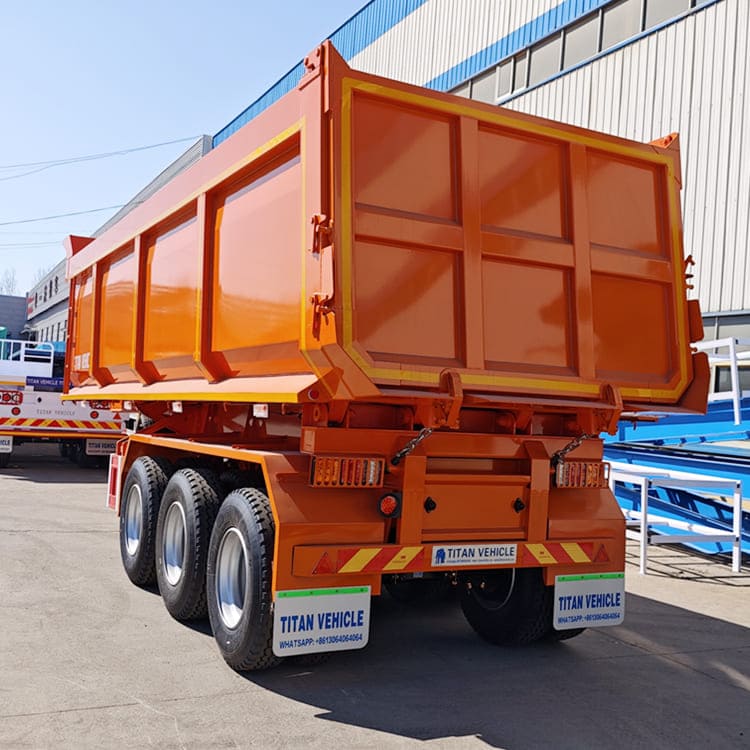

Tractor Tipper Trailer for Sale in Jamaica

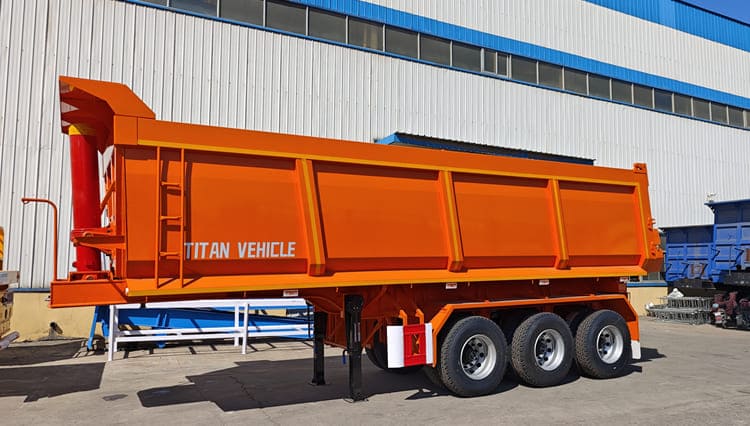

Tractor Tipper Trailer for Sale in Jamaica

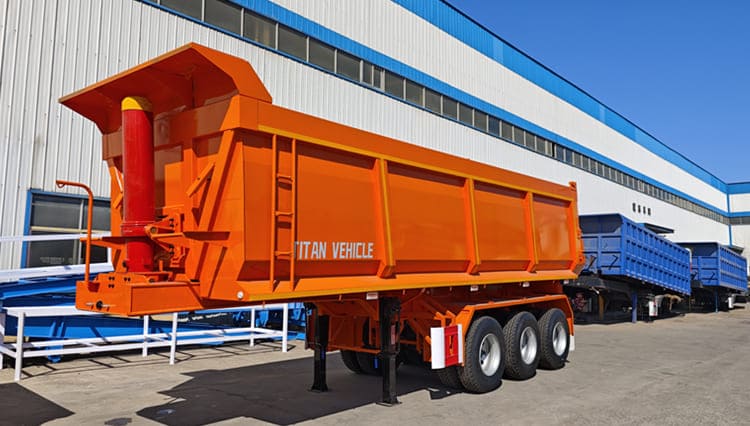

Tractor Tipper Trailer for Sale in Jamaica
Tractor Tipper Trailer for Sale in Jamaica
Tractor Tipper Trailer for Sale in Jamaica
Dimension: 9300mmx2500mm x3482mm
Total volume: 30CBM

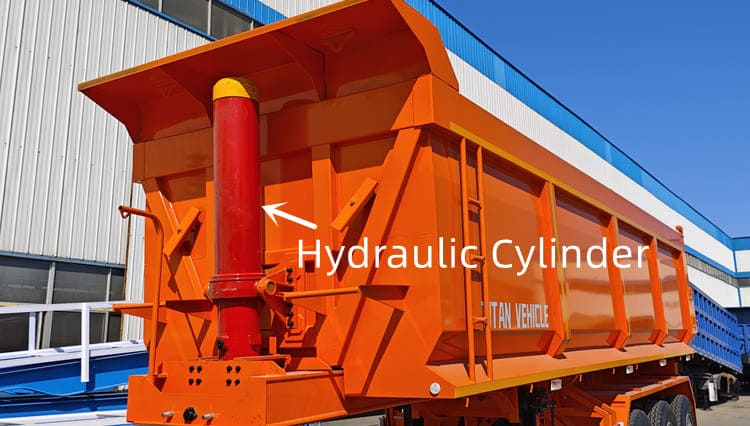

Lifting System: TITAN lifting cylinder
Axle: 3 Axle, 13T
Tire: 12R22.5

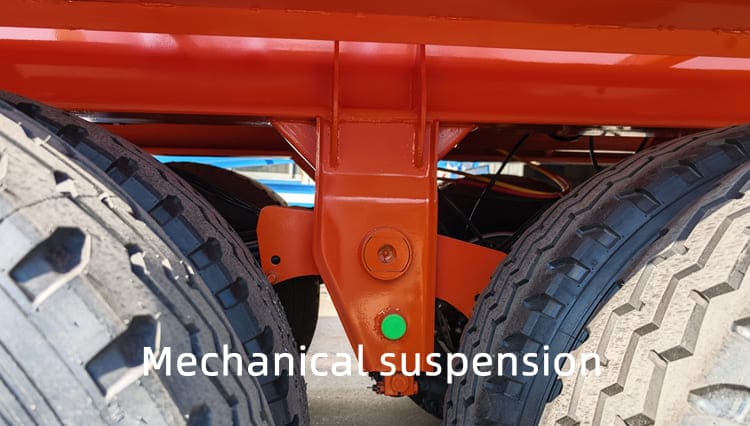

Suspension: Mechanical suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

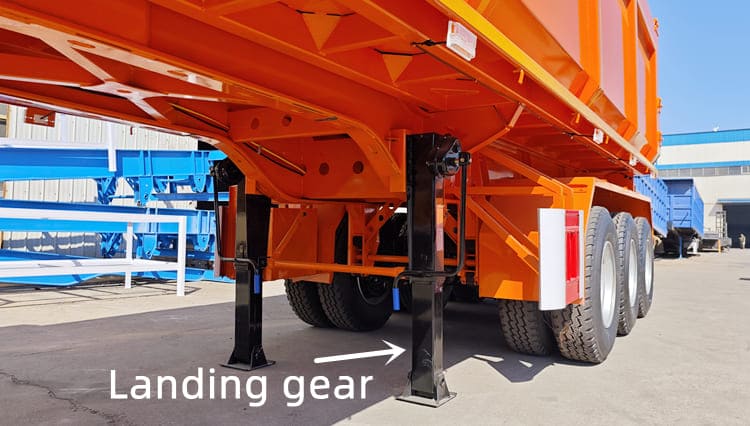

Landing gear: 28 ton Landing Gear

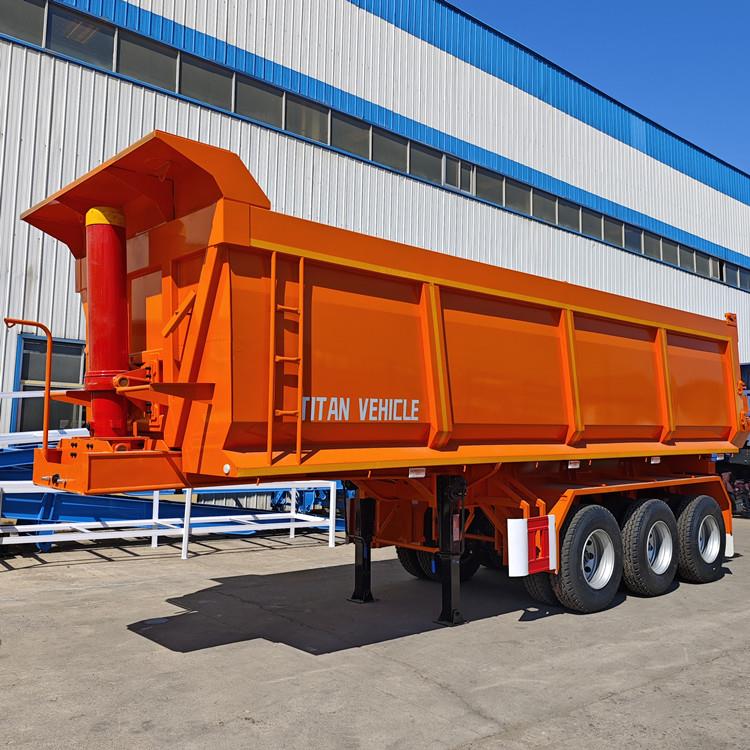

Tractor Tipper Trailer for Sale in Jamaica
In terms of detailed advantages, Titan Tractor Tipper Trailer has been fully optimized around the usage scenarios in Jamaica. Considering that some roads in Jamaica have large slopes, the tractor tipper trailer is equipped with an enhanced hydraulic lifting system, whose lifting speed is 30% faster than that of ordinary tipper trailers.
Moreover, the lifting process is stable, and even on steep sections, tractor tipper trailer can accurately control the unloading angle to avoid material scattering; the vehicle body is treated with an anti corrosion coating, which effectively resists rust caused by rain and sea breeze in Jamaica's hot and rainy tropical climate, extending the service life of the tractor tipper trailer to 8 - 10 years, far exceeding the industry average.
In addition, the tractor tipper trailer is equipped with an intelligent central control system, which can display key data such as hydraulic oil temperature and lifting height in real time. The driver can accurately grasp the tractor tipper trailer status through the screen, reducing the error rate of operation;
In terms of body structure characteristics, tractor tipper trailer for sale shows strong stability and load bearing capacity. The frame is made of high - strength manganese steel and manufactured through the integral stamping forming process. Compared with the traditional welded frame, tractor tipper trailer for sale torsional strength is increased by 40%, which can withstand the bumps and impacts under heavy load. Even when driving on the rough rural roads in Jamaica, it is not easy to have frame deformation.
The tractor tipper trailer for sale cargo box adopts a U - shaped structure design. This design not only increases the volume of the cargo box, which can load 15% more materials than the ordinary rectangular cargo box, but also reduces material residue. During unloading, materials can slide down quickly along the inner wall of the U - shape, avoiding material accumulation in the cargo box and reducing the difficulty of cleaning.
The bottom of the cargo box is also equipped with a wear resistant steel plate with a thickness of 12mm. Aiming at the friction of hard materials such as sand and gravel, tractor tipper trailer for sale wear - resistant performance is increased by 50%, reducing the wear of the cargo box and lowering the later maintenance cost.
In addition, the tractor tipper trailer for Sale in Jamaica's suspension system adopts multi leaf leaf springs with hydraulic shock absorbers, which can effectively absorb road bumps, keep the tractor tipper trailer body stable during transportation, protect the materials in the cargo box, and improve the safety of vehicle driving.
Before shipment, Titan has carried out strict protective treatment on each tractor tipper trailer. The staff will cover the surface of the cargo box with a thickened waterproof tarp and wrap anti rust film on key parts such as hydraulic interfaces and tire hubs to prevent seawater and moisture from damaging vehicle components during sea transportation; at the same time, the hydraulic system of the tractor tipper trailer for sale is emptied and filled with special anti rust oil to ensure that the tractor tipper trailer for sale can be directly put into use after arriving in Jamaica without additional system maintenance.
