The three-axle low bed truck for sale has a strong load-bearing capacity and stability, making it an ideal choice for transporting large cargo and heavy machinery. The low bed trailer truck sturdy and durable design can cope with the complex terrain and climatic conditions in Jamaica, providing you with long term and reliable service.
Low Bed Trailer Truck for Sale in Jamaica

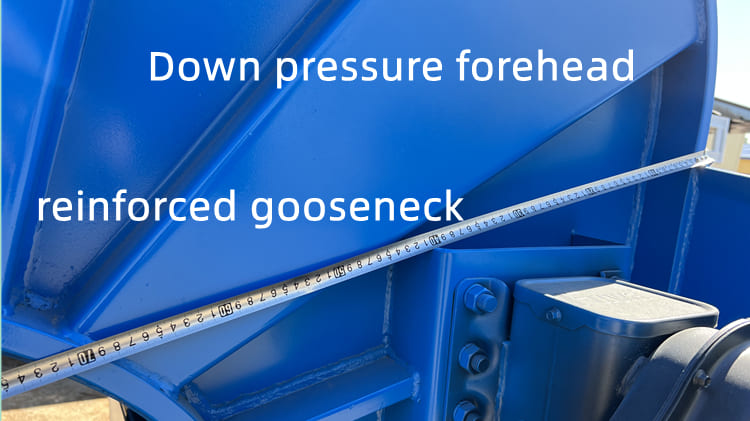

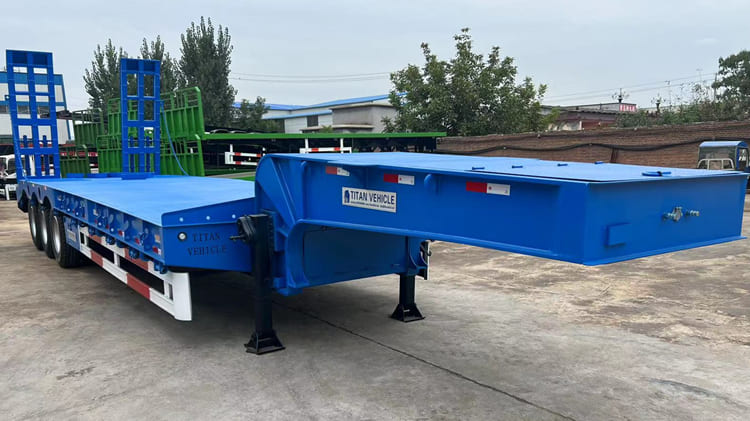

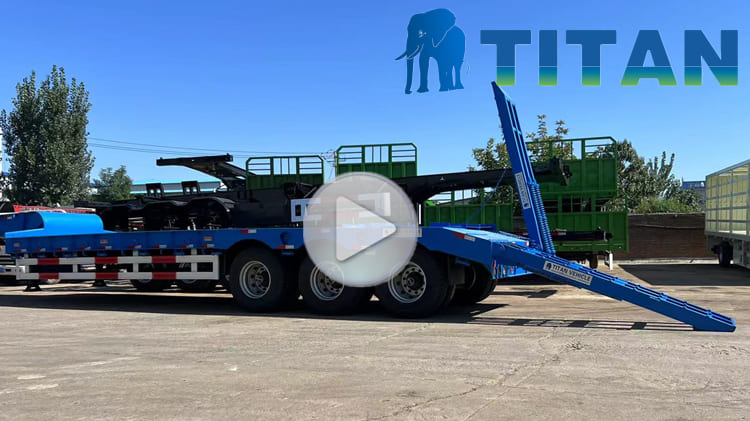

This three-axle low bed truck for sale in Jamaica adopts a gooseneck frame design. The front gooseneck traction pin is perfectly connected with the tractor. The downward pressure forehead prevents the heavy-loaded head from tilting. The low center of gravity design of the middle cargo platform ensures stability. The rear wheel frame supports the heavy-loaded cargo.
The main beam of the frame is made of high-strength HG60 steel, which is welded in one piece through automatic submerged arc welding technology to form a rigid frame that is resistant to distortion and earthquake.Whether it is bumpy mining roads or steep slopes during long-distance transportation, the risk of frame deformation is extremely low.
Low Bed Trailer Truck for Sale in Jamaica
Low Bed Trailer Truck for Sale in Jamaica
Low Bed Trailer Truck for Sale in Jamaica
Low Bed Trailer Truck for Sale in Jamaica
Low Bed Trailer Truck for Sale in Jamaica
Loading capacity: 60 ton

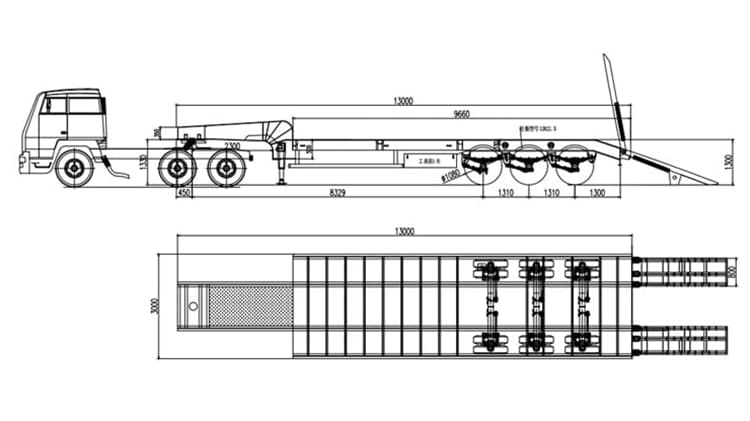

Overall dimension: 13000mm * 3000mm *3750mm
Axles: 3 axles, TITAN Brand
Tire: 12 units, 12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Landing gear: JOST brand

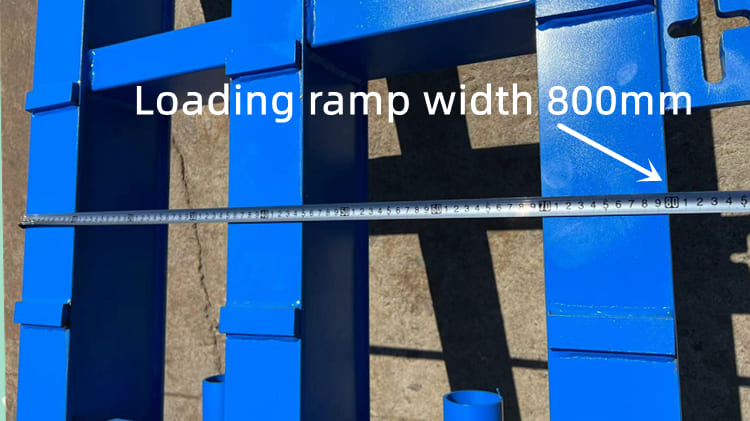

Ramp: Spring Ramp
Kingpin: JOST brand
Valve: WABCO valve
Light: LED light
Low Bed Trailer Truck for Sale in Jamaica

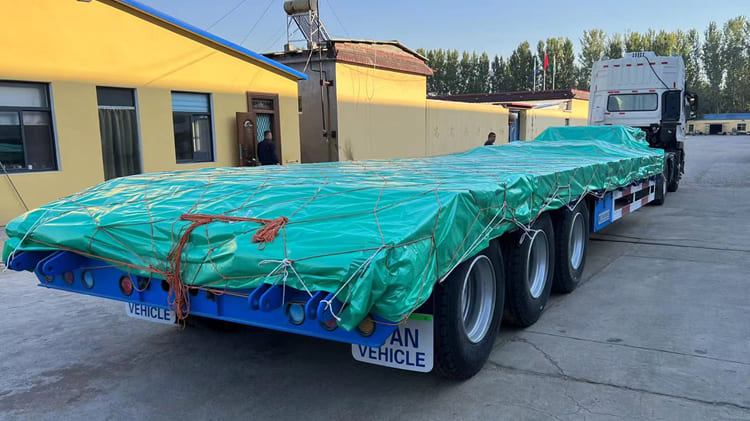

To prevent seawater from corroding the body of the low bed trailer truck for sale in Jamaica, the low bed truck will undergo special sealing and anti-corrosion treatment before shipment, including covering with a waterproof film and spraying anti-rust agent, all exposed metal connections are coated with anti-rust grease to prevent oxidation caused by seawater salt. Thereby enhancing the low bed trailer truck's ability to resist the marine environment.
Low Bed Trailer Truck for Sale in Jamaica
Whether it is the transportation of heavy equipment in mining areas, the transfer of engineering machinery at construction sites, or the long-distance cross-regional transportation of agricultural products, the advantages of the TITAN low bed truck for sale are fully covered. Low bed truck lowers the overall center of gravity of the low bed trailer truck, has stronger pass ability, and can easily cross height-restricted sections; the corrosion-resistant steel material can withstand the humid coastal climate and road salt corrosion, extending the service life, key components are made of high-strength materials and precision welding, which reduces the frequency of maintenance and reduces operating costs.

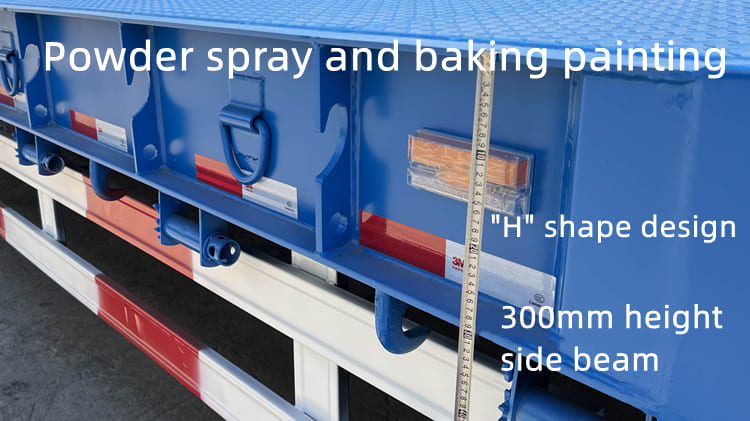

Reinforced Side Beams: Constructed from high-strength T700 steel, these 300mm high, 140mm wide, and 8mm thick "H"-shaped beams offer double the load-bearing capacity of conventional steel. The low bed trailer truck for sale in Jamaica robust design ensures dimensional stability for at least a decade, and significantly improves resistance to bumps and vibrations.Solid Cross Beams: Utilizing high-strength HG60 steel (6mm thick), the cross beams feature a unique, uninterrupted design. This eliminates the need for weakening cutouts often required in other designs (e.g., accommodating flatbed cross members), resulting in a substantial increase in both lifespan and load capacity.
Heavy-Duty Center Supports: For low bed trailer truck under 80 tons, robust "G"-type center supports (superior to standard "C"-type supports) are employed. To further enhance stability, additional reinforcement plates are strategically welded at the trapezoidal beam joints, preventing deformation under lateral pressure. Low bed truck exceeding 80 tons utilize welded I-beam diagonal supports mirroring the main beam structure for superior support. The central and side supports work in tandem to prevent side beam compression and resulting main beam deformation.
The frame incorporates three key reinforcement areas for enhanced durability: Gooseneck Reinforcement: The gooseneck area features a double-layered upright support plate for increased strength. Rear Axle Reinforcement: Above the rear axle, a triple-layered upright support plate (inner and outer layers) provides robust reinforcement. Side Beam Tire Area Reinforcement: A solid double-plate reinforcement is integrated into the side beams near the tires.
