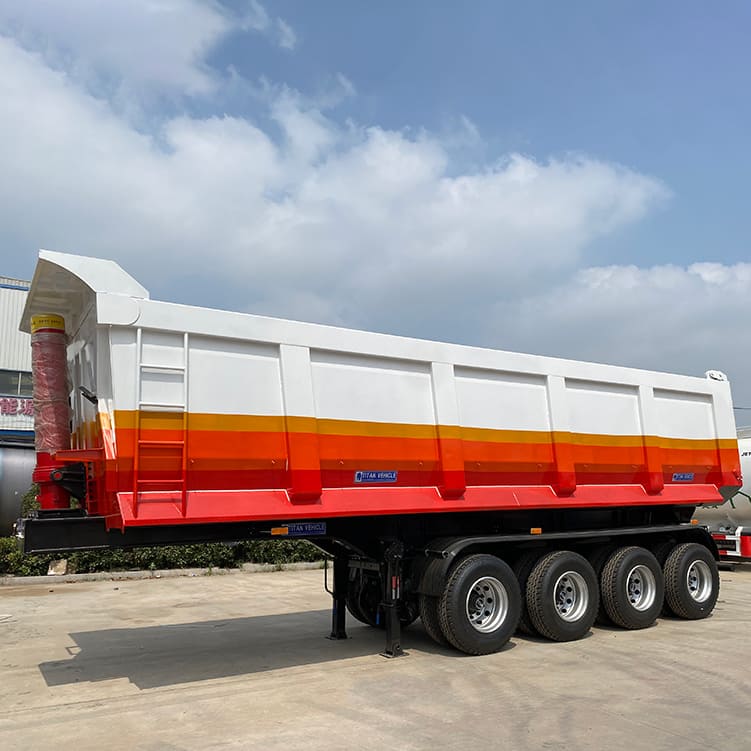

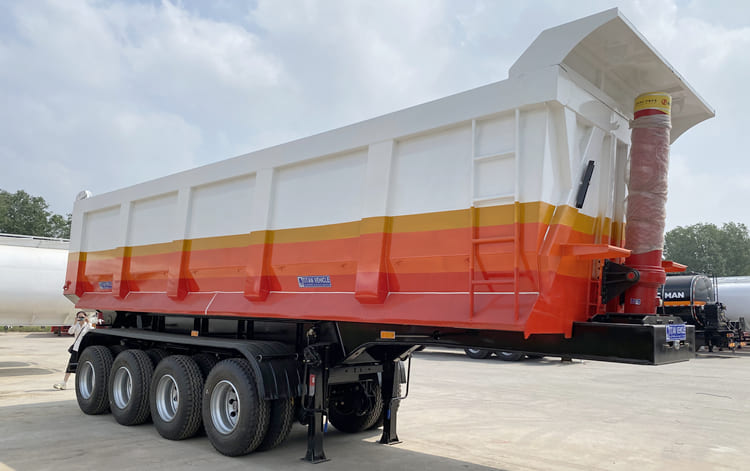

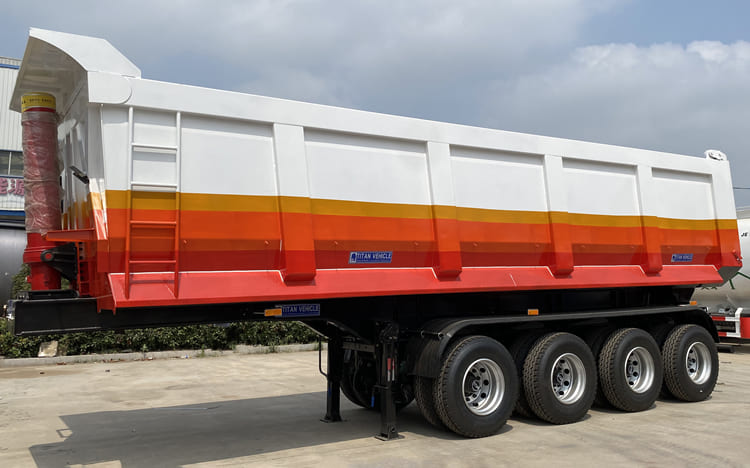

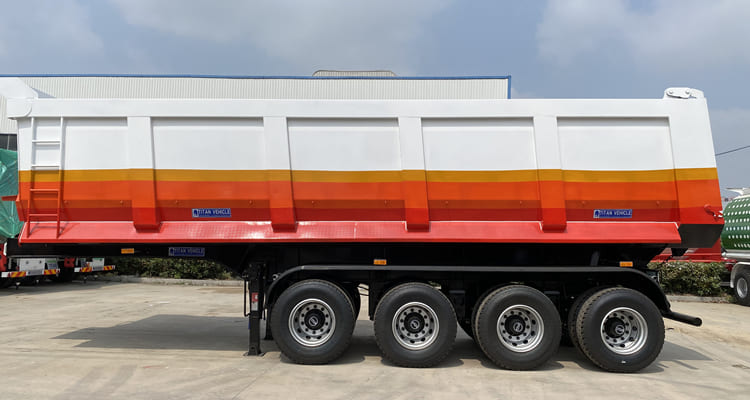

End dump semi trailer is a type of dump trailer that unloads by tilting its bed to discharge its load, typically from the rear. End dump trailer for sale in Jamaica commonly used in construction, agriculture, and demolition for hauling materials like gravel, sand, and demolition debris.
End dump semi-trailers feature a bed that pivots near the rear, lifting to dump material backward. End dump trailers available for sale in Jamaica are frequently utilized in construction, agriculture, and demolition sectors, suitable for transporting materials such as gravel, sand, and demolition waste.

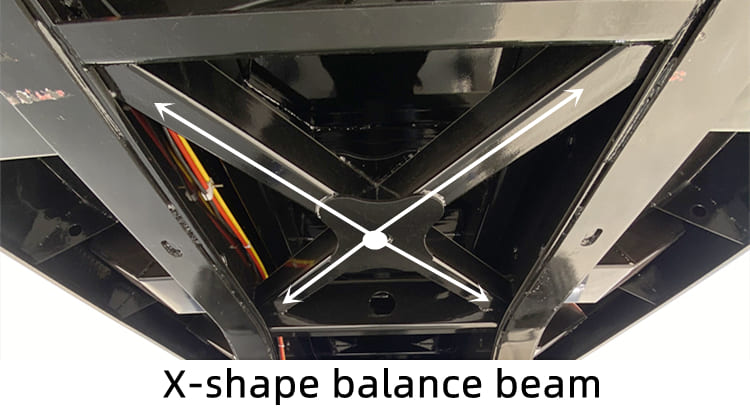

Strategically positioned 'X'-shaped of TITAN end dump trailer for sale in Jamaica support balance beams at the front and rear bolster rigidity, effectively resisting deformation. Further reinforcement includes double-layer thickening on the middle and lower plates of the gooseneck section, complemented by multiple reinforcements integrated into the cargo box floor.
Buy Quality End Dump Trailers | Financing Available | for Sale in Jamaica
Buy Quality End Dump Trailers | Financing Available | for Sale in Jamaica
Buy Quality End Dump Trailers | Financing Available | for Sale in Jamaica
Buy Quality End Dump Trailers | Financing Available | for Sale in Jamaica
Buy Quality End Dump Trailers | Financing Available | for Sale in Jamaica
Buy Quality End Dump Trailers | Financing Available | for Sale in Jamaica
Buy Quality End Dump Trailers | Financing Available | for Sale in Jamaica
Overall size: 9900mm * 2500mm *3700mm
Loading volume: 40 cubic meters
Support balance beam: "X" shaped balance beam
Bolt: High strength bolts
Mut: double layer nuts
Axles: 4 axles, 13 tons TITAN axle
Braking pad: 16 tons
Suspension: Heavy duty mechanical suspension
Tipping system: HYVA lifting cylinder
Tire: 16 units, 12R22.5 tire
King pin: 90# king pin

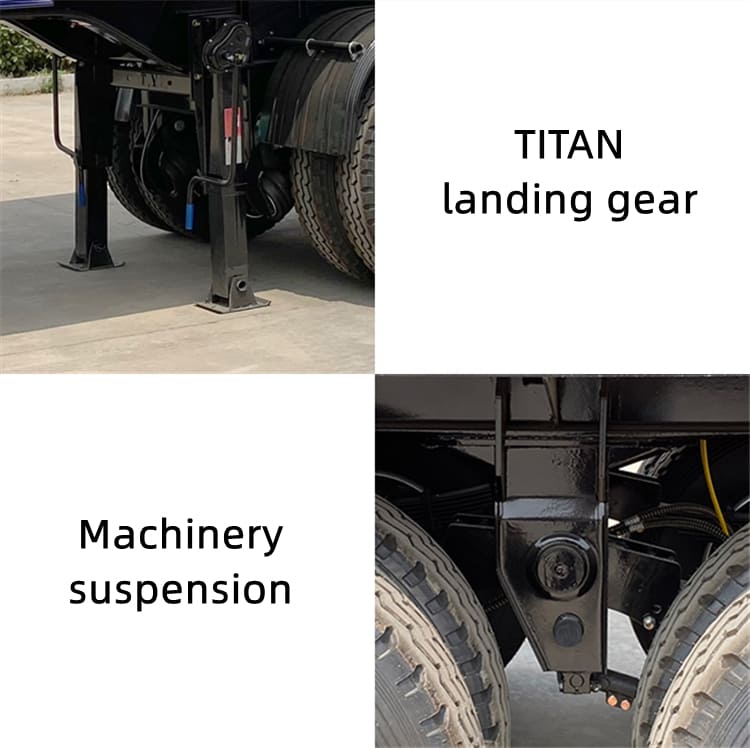

Landing gear: TITAN 28 tons landing gear
Brake system: the WABCO system
Spare tire carrier: 2 sets
Loading lock: double loading locks
Electrical system: 24V, LED lights
The robust double main beam design of TITAN end dump trailer for sale in Jamaica delivers exceptionally smooth, high-strength welds while significantly enhancing torsion resistance and impact absorption. This engineered structure reliably meets diverse road loading requirements. Strategically positioned 'X'-shaped support balance beams at the front and rear bolster rigidity, effectively resisting deformation. Further reinforcement includes double-layer thickening on the middle and lower plates of the gooseneck section, complemented by multiple reinforcements integrated into the end dump trailer for sale in Jamaica box floor.

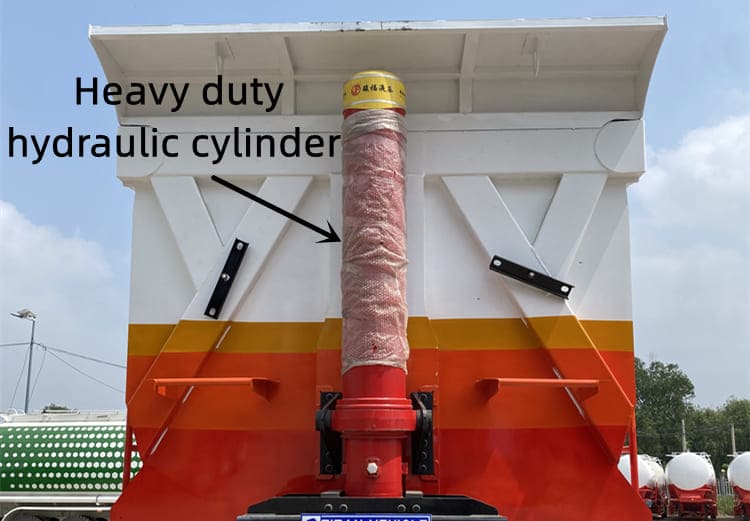

TITAN end dump trailer for sale in Jamaica has efficient unloading. Each rollover has a balance beam, so even if the end dump semi trailer is vertical, it will not roll off. The hydraulic tilting mechanism of our end dump semi trailer enables rapid, efficient material discharge—significantly reducing unloading time and eliminating manual labor requirements. Heavy-duty cylinders have a larger diameter, greater lifting capacity and higher height, which makes the lifting more stable and less rolling.
TITAN end dump trailer for sale in Jamaica has versatile material handling. TITAN end dump semi trailer can handle a wide range of materials, making them suitable for various hauling needs. And it is good for heavy loads. end dump semi trailers are well-suited for handling heavy loads, making them popular in construction and demolition.

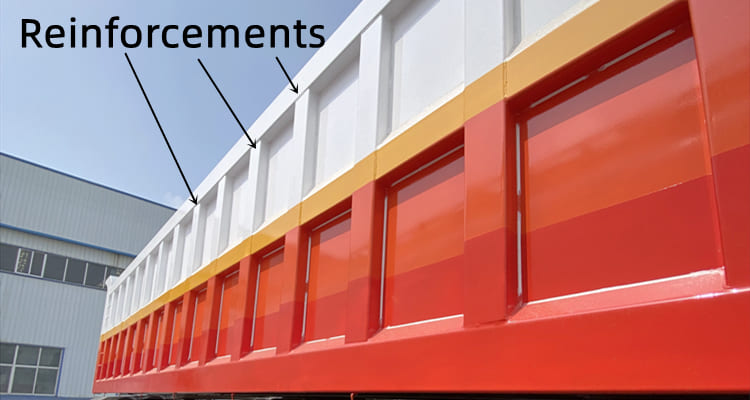

TITAN end dump trailer for sale in Jamaica is reinforced with multiple longitudinal beams, a structural optimization aimed at preempting deformation. These longitudinals of end dump semi trailer are strategically positioned to form a robust load-bearing framework, effectively dispersing concentrated stresses across the entire structure. This reinforcement of end dump semi trailer not only resists warping under static heavy loads but also mitigates fatigue-induced distortion during prolonged operational cycles, ensuring dimensional stability in diverse working conditions.
The end dump semi trailer walls undergo targeted thickening treatments: sidewalls are fabricated to a 4-millimeter thickness, while the base plate is enhanced to 6 millimeters. Such construction guarantees structural integrity even when the trailer is laden with heavy payloads, preventing panel deformation. Complementing this, the dual-locking mechanism for loading points features a redundant design. This dual-lock configuration ensures positive engagement under all dynamic conditions, including extreme trailer oscillations, eliminating the risk of unintended opening and thus securing cargo safety throughout transit.
Before the end cement semi tanker is delivery, the whole dump tanker is sprayed with wax oil in an all-round way without dead corners. Titan will also cover the tarp on the engine and compressor to protect them. Titan will also cover the entire end cement semi tanker for sale in Jamaica with tarps before shipment, which is completely free.
