Chapter 1: What kind of trailer is RGN?

  1.1: What is the difference between RGN and lowboy trailers?

Chapter 2: How does a removable gooseneck work?

Chapter 3: What are the characteristics of a removable gooseneck trailer?



Advantages of RGN Removable Gooseneck Trailer in Jamaica



Chapter 1: What kind of trailer is RGN?

RGN stands for "Removable Gooseneck" trailer, which is a type of specialized trailer used for transporting heavy, oversized, or oddly-shaped equipment and cargo. RGN trailer for sale has a detachable front end that can be removed to create a ramp for loading equipment onto the trailer deck. This feature allows RGN trailers to accommodate tall equipment that would not fit under a traditional trailer. Additionally, RGN trailers are often designed with multiple axles to distribute weight evenly and provide greater stability during transport.

Advantages of RGN Removable Gooseneck Trailer in Jamaica

1.1: What is the difference between RGN and lowboy trailers?

1. Gooseneck

Notable characteristics of an RGN are that it can be detached from the front unlike with a lowboy trailer. This feature has been provided in an RGN to enhance loading and offloading of cargo. The user has an easy time during such occasions. This is unlike for a lowboy trailer that load the cargo from rear.

2. Weight and Height Capacity

Weight and height considerations are some of the considerations to make in your choice of a trailer. If they are a concern for you, go for an RGN trailer. It is the best type to transport cargo that is heavy and tall especially when these two parameters exceed the standard set by the law. While a lowboy trailer can help you in such occasions, RGN can take relatively higher capacity and dimensions of cargo. Again, RGN trailers are more dedicated to this function more than the lowboy trailer. For standard cargo, you can go for a lowboy trailer. However, an RGN trailer for sale may not be an economically feasible option.

3. Cost Implications

RGN trailers are usually costly than their lowboy trailer counterparts. In that case, the choice of investing in a more specialized hauler for heavy cargo would mean spending a lot more money than when going for a lowboy trailer. The enhanced capabilities that make an RGN trailer for sale able to take up a 70 tons cargo compared to an 40 tons cargo comes with increased cost.



Advantages of RGN Removable Gooseneck Trailer in Jamaica

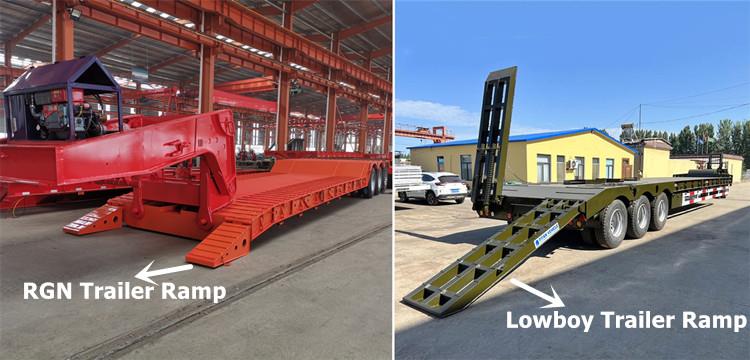

Different Ramp of RGN Trailer and Lowboy Trailer



4. Stability

Stability is a very important factor during the loading, transportation and offloading of cargo. Due to its low center of gravity, the RGN is the most stable option. You would want this type of trailer when carry heavy load that needs some good balance during transportation. Stable operations not only make your job easier but also enhance your efficiency. You won’t have to compromise on travelling speeds because of stability issues. In the end, you will have done your transportation swiftly.

5. Number of Axles

Most of the common lowboy trailers that you will ever find in the market have two or three axles. For RGN trailers, they have 3 axles or 2 axle-lines commonly. Lowboy trailers can taken any cargo within the set legal freight weight hence are applicable in most industries. At times, you will have some cargo that needs special trailers and in such a case, the RGN trailers are the best option. These are the type of trailers to use in motor and construction industries. Any industry that uses heavy machinery has an extensive use of RGN trailer for sale. This is more so due to their stability made possible by their low center of gravity. The ladder angle on an RGN trailer is far much better than that of a lowboy trailer.

6. Trailer Structure

The RGN trailer for sale offers you with a more durable and strong structure compared to a lowboy trailer. Due to the detachable design of the gooseneck and the need for a lower working platform as provided by the RGN trailer option, high strength material with a rational design has been put in place. If you are looking for such qualities in a trailer, you got the answer with you.



Advantages of RGN Removable Gooseneck Trailer in Jamaica

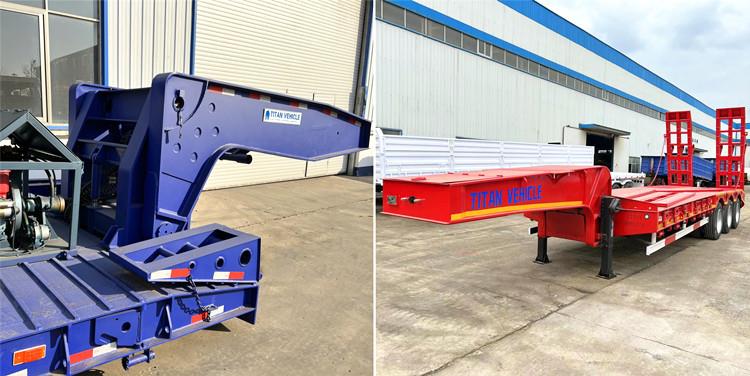

Different Gooseneck of RGN Trailer and Lowboy Trailer



Chapter 2: How does a removable gooseneck work?

Uncoupling for Loading

During coupling and uncoupling, the trailer assembly is let to a lowered position. During uncoupling, the safety pin handle gets puled and locked open to let the safety pin detach the T-bar yoke free from the yoke pocket. The control lever for the hydraulic ram feature on the other hand is maneuvered to provide hydraulic pressure fluid inside the dram in order to lift the thrust blocks somewhat clear off their sitting positions on the main beam.

After achieving this, the lock finger gets retracted and the crank handle then is swung in an upward manner to anchor the safety hooks and the thrust blocks upwardly. Once this is attained, the lever is then locked in position through the lock finger that is fit in an upper coupling hole for the same.

Next, the hydraulic ram feature gets extended further to facilitate a further gooseneck rotation with respect to the bed of removable gooseneck trailer for sale in Jamaica. This is done to facilitate the withdrawing of the two lock pins that are engaged with the hooks.

The pins get swung in an upward manner through the use of the crank handle. On achieving this, the hydraulic pressure in the ram gets reversed hence allowing the pressure to go down in the cylinders’ bottom chamber. This action slowly lowers the gooseneck and the trailer bed to the ground. You can choose to place a removable support block in between the trailer frame and the gooseneck beam in order to keep the gooseneck slightly off the ground surface. It is at this point when you can move the tractor away in order to give room for loading.



Advantages of RGN Removable Gooseneck Trailer in Jamaica

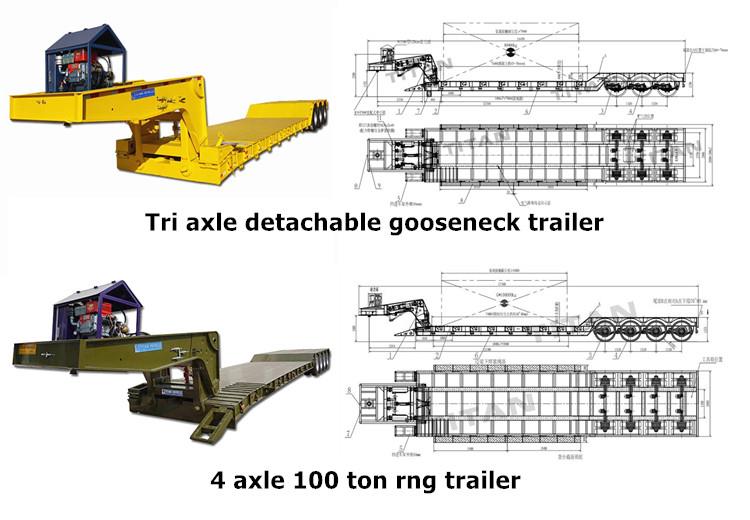

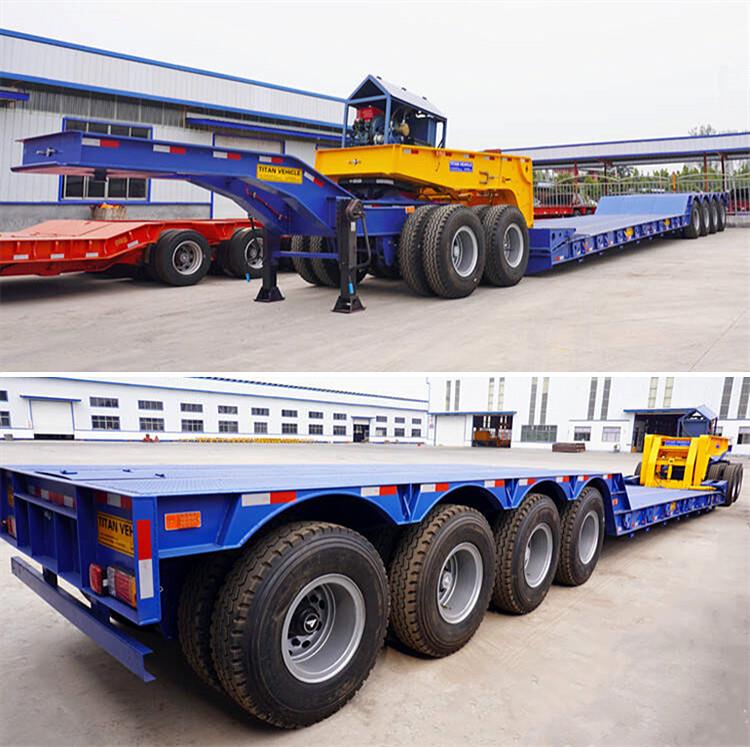

4 Axle Removable Gooseneck Trailer for Sale in Jamaica



Coupling for Transportation

Once your cargo has been safely loaded on the removable gooseneck trailer bed, it is time to reconnect the gooseneck and the trailer bed ready for transit. Basically, this is a reverse procedure of the uncoupling operation.

First, the operator needs to reverse back to the trailer bed location. Ensure that the coupling hooks are set in position to facilitate easy engagement.

The forward section of the trailer bed has a forwardly swerving entryway to make the hooks align with their attaching positions. When the T-bar yoke is perfectly aligned with the yoke pocket, fluid pressure can now be supplied to the hydraulic cylinders’ top chambers.

This forces the piston rods downwards hence driving the T-bar yoke directly into the pocket.  The safety pin is then inserted to ensure a positive link between the pocket and the T-bar yoke. More hydraulic pressure is supplied into the cylinders to move the trailer bed and the gooseneck in an upward direction.

The bed of removable gooseneck trailer should be moved to reach a position higher than its horizontal operating level to facilitate the moving of the lock pins into their perfect locking position. Once this is achieved, the hydraulic rams are then retracted back to allow the trailer bed and the gooseneck to descend.

The next thing is to move the safety hooks and the thrust blocks downward into an engaging position to lock them in place. After that, the fluid pressure in the rams is then reversed moderately. This provides a hydraulic interlock that holds the thrust blocks tightly in place. Once this is done, the removable gooseneck trailer for sale in Jamaica assembly is now ready for over the road transportation.



Advantages of RGN Removable Gooseneck Trailer in Jamaica

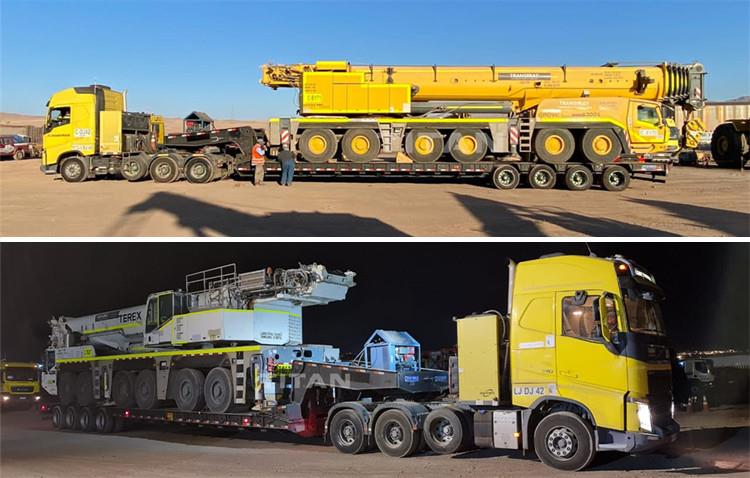

Customer Feedback of TITAN RGN Trailer for Sale



Chapter 3: What are the characteristics of a removable gooseneck trailer?

A removable gooseneck trailer is a specialized type of trailer commonly used for transporting heavy equipment. Here are some of its key characteristics:

1. Removable Gooseneck: The trailer has a detachable front end that can be removed to allow the cargo to be loaded onto the removable gooseneck trailer from the front.

2. Versatility: The removable gooseneck design allows the trailer to be used for a variety of different cargoes, including heavy equipment like bulldozers, excavators, and cranes.

3. Low Platform: Due to the low ground clearance and low longitudinal beam height of this kind of removable gooseneck trailer for sale, the load-bearing surface is 300-400mm lower than that of the normal concave-center removable gooseneck trailer, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.

4. High Capacity: The construction of the trailer is typically very robust, allowing it to handle heavy loads with ease. Removable gooseneck trailer's main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel.

5. Safety: The low profile and sturdy construction of the removable gooseneck trailer for sale in Jamaica provide added safety benefits when transporting heavy equipment or oversized loads.

6. Efficient: Because this type of model eliminates the rear ladder, the bearing surface can be lengthened, and because the construction machinery does not go from the rear, the slope angle in front of the bridge can be appropriately increased, so that the bearing surface can be lengthened. The length of the low flat cargo table with a ladder at the end is longer, which can effectively load more loads, indirectly improve the loading efficiency, and create greater benefits for users.
